Steel Dump Inserts

EZ-Dumper Dump Inserts
DescriptionPhotosTechnical Specs - 8' Steel InsertTechnical Specs - 6' Steel InsertBrochureOwner's Manual

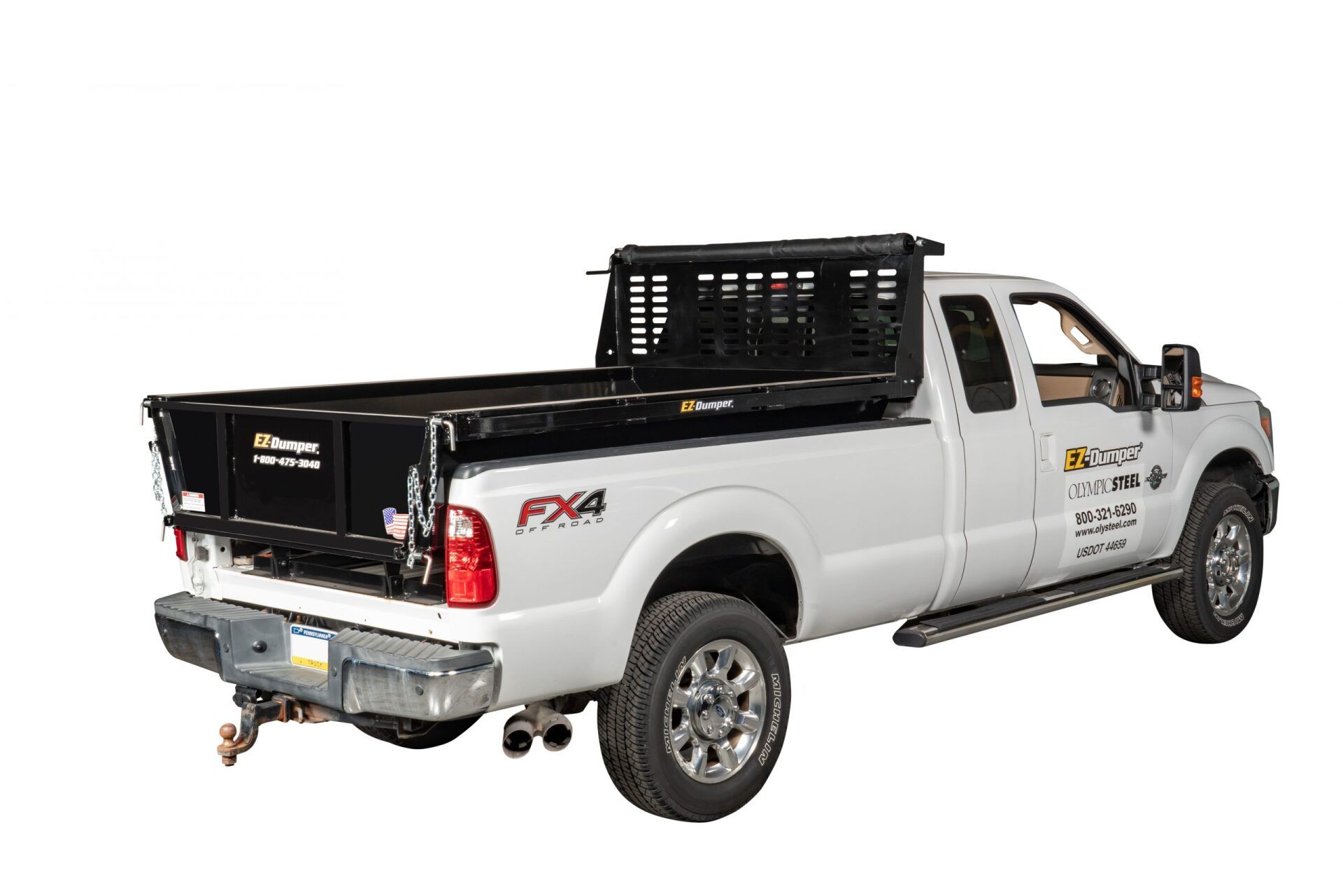

The EZ-Dumper Dump Insert is the perfect solution for landscapers, general contractors and handy homeowners. It bolts directly to most full-size pickup trucks in about two hours with few or no alterations. It dumps and lowers using a 12V Monarch Hydraulic Double-Acting Pump that is connected directly to your truck’s battery. It is also available in a 6’ model that fits most short bed trucks and has a payload capacity of 1.5 cubic yards!

Easy to Install and Operate
All you need are a few common tools. No alterations are needed for most trucks. Simply slide the EZ-Dumper into your truck bed, secure it with bolts in the holes already on your truck, and you’re ready to go. To empty a payload, just open the tailgate and push the button on your remote. The EZ-Dumper lifts to an angle of 51 degrees in about 15 seconds for a quick and clean unloading.

Features

  • The Original Hydraulic Dump Insert for Trucks (Since 1972)
  • 6,000lb Lift Capacity
  • 12 Gauge Floor
  • 14 Gauge Sides
  • Expansion Stake Pockets (outside)
  • Flat Bar Rub Rails
  • Powder Coat Black (Colors Optional)
  • 2 Cubic Yards of Capacity (8′ Insert, Upgradable to 4 Cubic Yards with Mounted Sideboads and Cab Protector)
  • Turn Your Pickup into a Dump Truck in About 2 Hours without the Overhead Expense
  • Removable, Double-acting Tailgate Lets You Dump, Then Spread What You Dump
  • Backed by the Best Warranty in the Industry: Two Years of Front-to-Tailgate, Parts and Labor
  • Fits Most Full Size Trucks, Short Bed Truck Insert Also Available (EZ0012TSB)
  • Perfect for Landscapers, General Contractors and Handy Homeowners
Specifications

Insert Type EZ0012T 8′ Dump Insert
Bed Length 96″
Unloaded Weight 787 lb
Payload Capacity 6000 lb
Volume Capacity 2 Cubic Yards
Dump Angle 51 Degrees
Frame Construction Structural Steel Angle
Side Steel 14 Gauge
Deck Steel 12 Gauge
Tailgate Double-Acting Removable Spreader
Energy Source Truck Battery
Power Unit Double Acting Monarch Pump
Cylinder(s) Mounted Under Unit
Hydraulics Power Up/Power Down
Remote Control Standard
Tie-down Features Full Length Flat Bar Rub Rails
Expansion Features 8 Stake Pockets (outside)
Lubrication Thread in Grease Fittings on Pivots
Installation Four Bolt-Down Clamps
Standard Color Powder Coat Black (other colors optional)
Warranty 2 Years Front to Tailgate
Available Options

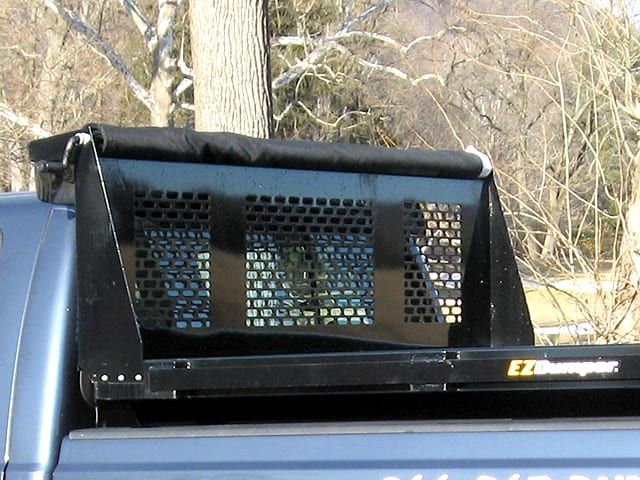

  • Steel Cab Protector

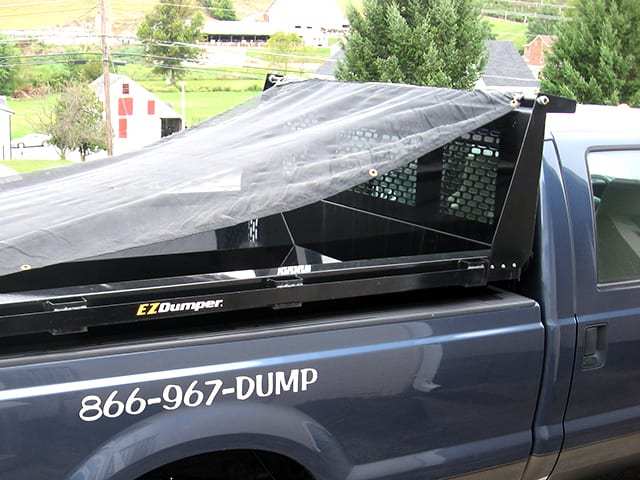

  • Tarp Kit

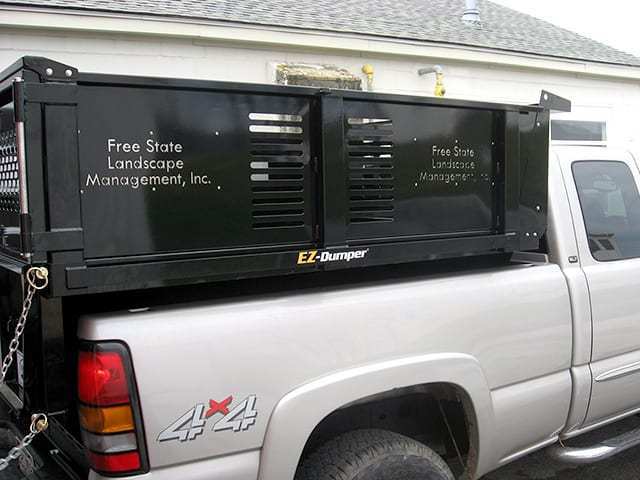

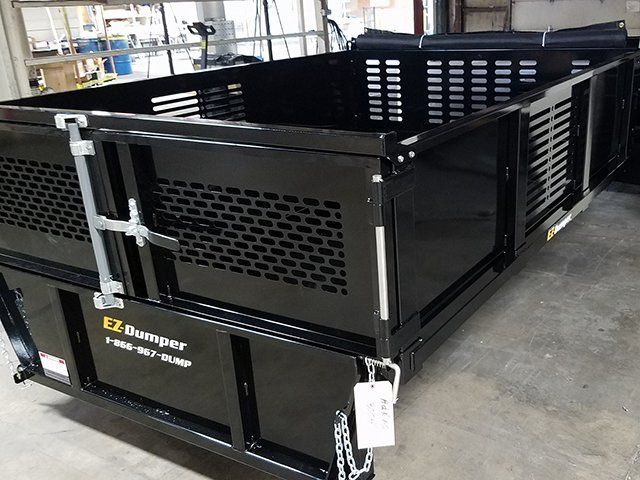

  • 20″ High Steel Side and Tailgate Extensions
  • 12″ High Steel Side Extension Bracket Kit (holds 2×12 board)
  • 19″ High Steel Side Extension Bracket Kit (holds 2×12 board)
  • Coal Chute Spreader Tailgate
  • Hammertone Powder Coat Finish
  • Custom Color Powder Coat Finish
Specifications

Insert Type EZ0012TSB 6′ Dump Insert
Bed Length 74-1/8″
Unloaded Weight 691 lb
Payload Capacity 6000 lb
Volume Capacity 1.5 Cubic Yards
Dump Angle 51 Degrees
Frame Construction Structural Steel Angle
Side Steel 14 Gauge
Deck Steel 12 Gauge
Tailgate Double-Acting Removable Spreader
Energy Source Truck Battery
Power Unit Double Acting Monarch Pump
Cylinder(s) Mounted Under Unit
Hydraulics Power Up/Power Down
Remote Control Standard
Tie-down Features Full Length Flat Bar Rub Rails
Expansion Features 6 Stake Pockets (outside)
Lubrication Thread in Grease Fittings on Pivots
Installation Four Bolt-Down Clamps
Standard Color Powder Coat Black (other colors optional)
Warranty 2 Years Front to Tailgate
Available Options

  • Steel Cab Protector
  • Tarp Kit
  • 20″ High Steel Side and Tailgate Extensions
  • 12″ High Steel Side Extension Bracket Kit (holds 2×12 board)
  • 19″ High Steel Side Extension Bracket Kit (holds 2×12 board)
  • Coal Chute Spreader Tailgate
  • Hammertone Powder Coat Finish
  • Custom Color Powder Coat Finish
